ZEDcell

Find the smallest leaks with sniffer testing

The ZEDcell is our standardized, robot-controlled system which you can use to locate even the smallest leaks using the sniffer method.

It is adapted to your needs and seamlessly integrated into your production lines.

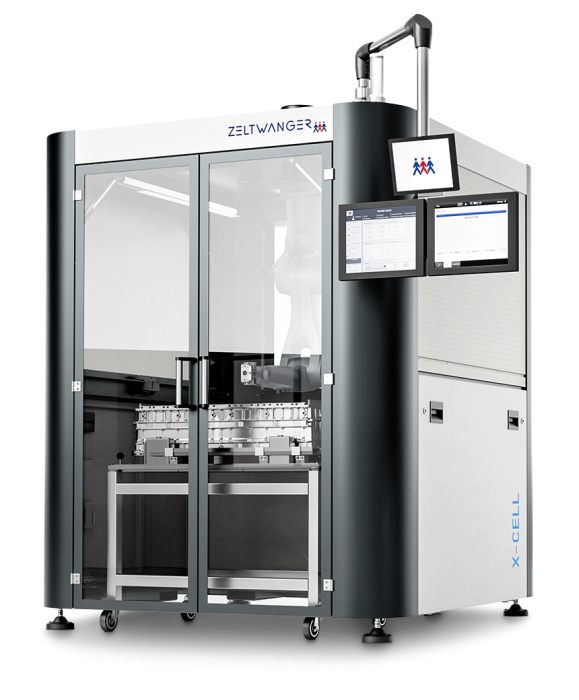

ZEDcell from ZELTWANGER

Processes

Component marking
Barcode/DMC scanning
Leak testing with detection gases
Joining/adapting
Electrical test
Presence monitoring

Application examples

Aluminum cast housing
Battery housing
Battery frame
Fuel cells, etc.
Products from medical technology
Packaging/cosmetics
Household appliances
General industry

Technical information for the ZEDcell

Control: Siemens or Beckhoff
Communication: Connection to customer ERP systems via OPC UA, TCP/IP, … or USB and network interface, e.g., for file export in CSV, XML
Security: Safety bulkhead and protective doors with safety switch depending on the loading concept and accessibility. Safety-related connection to automatic loading and unloading

Power supply: 400 V / 480 V
Equipment: Pneumatics, electrics, and process technology integrated into the system
Status display: System status via signal light, component testing IO/NIO via LED concept
Component size: Individual
Component weight: Individual
System dimensions: Different scaling sizes depending on the component

Discover more about the ZEDcell and leak testing with detection gases in our brochure, which you can download free of charge.

Brochure Leak Testing with Trace Gases (PDF)
