ZEDbox

The universal control and evaluation unit

ZEDbox adapts to your requirements: As a network memory, the universal control and evaluation unit enables secure data transfer and archiving of all measurement results from your ZED family leak testing devices simultaneously.

To ensure secure data exchange, ZEDbox can be individually adapted to your company’s ERP system and used as a gateway. In addition, the new, decentralized ZEDsatellite modules and individual devices can be controlled and their data evaluated via the universal control and evaluation unit.

ZEDbox is compatible with all devices in the ZED device family.

Product features

PC-based control with powerful multi-core CPU (e.g., Intel ® CoreTM i7) and Windows Embedded 7
5″ TFT color monitor with touchscreen
Data storage on SSD (capacity: customer-specific up to approx. 1 TB)

Accessories (optional)

Memory
Mouse
Keyboard

ZEDbox application examples

Gateway to customer networks and applications
Central network memory for ZELTWANGER leak testing devices

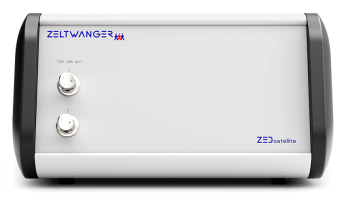

Control unit for decentralized ZEDsatellite modules
Control of customer-specific devices

Control options

PROFIBUS/PROFINET* Ethernet (Modbus)
Barcode control (RS232) RS232 (Modbus)
Configurable digital inputs and outputs*

Interfaces

VGA: To connect an external monitor*
USB and Ethernet interface: e.g., for file export in CSV, XML (test programs, results)
RS232 interface: e.g., for the barcode scanner
Dimensions (H x W x D): 153 x 365 x 391 mm
Weight: approx. 8 – 10 kg
Power supply: 24 VDC (+10 / -5%) 5 A
Voltage output: 24 VDC (+10 / -5%) 3 A
